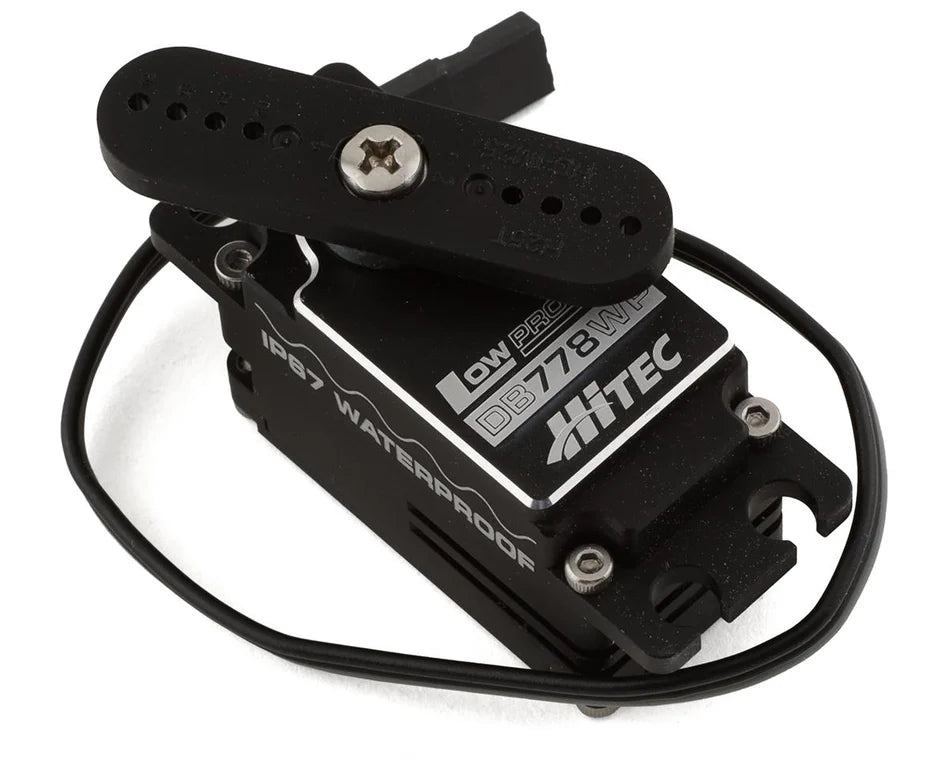

Hitec DB778WP 32-Bit MCU Low Profile Ultra Torque Waterproof Servo (High Voltage)

Skip to product information
1 of 3
Hitec Related Products
Out of stock
Price:
Regular price $139.99
Regular price Sale price $139.99
Sale Sold out
The Hitec DB778WP 32-Bit MCU Low Profile Ultra Torque Waterproof Servo is a high-performance, low profile DB778WP. Manufactured with exclusive “hitecnology” industrial servo innovation, the DB778WP’s design and premium-quality construction was built for demanding commercial applications, yet its superior torque also makes it the perfect hobby servo for 1/10th 2WD & 4WD off-road buggies and touring cars. Engineered with an ultra-efficient brushless motor, high-resolution digital circuit, hardened steel gears and an all-aluminum, IP-67 rated waterproof case, the DB778WP excels when pushed to the limits on ultra-high bite carpet or clay tracks. Take on the competition and drive hard, knowing you are backed by Hitec’s 2-year warranty which affords you the added protection you deserve! Invest in the best with Hitec!

Features:
  • Voltage Range is 3.7V - 8.4V
  • Ultra-Efficient Brushless Motor
  • Hardened Steel Gears
  • All Aluminum Case
  • IP-67 Waterproof Rated
  • High Response, High Resolution Circuitry
  • 32-Bit MCU Technology / 4096 Resolution
  • Smart Sense Technology for Servo Analytics
  • Full Programmability with DPC11 or HFP-30 (sold separately)
  • H25T Industry Standard Output Spline
Specifications:
Operating Voltage Range (Volts DC): 3.7V ~ 8.4V
Speed (Second @ 60°): 0.08 @ 8.4V
Maximum Torque Range: 283.56 oz. / in. @ 8.4V (20.41 kg.cm @ 8.4V)
Current Draw at Idle: 28mA @ 7.4V
No Load Operating Current Draw: 600mA @ 7.4V
Stall Current Draw: 5,500mA @ 7.4V
Dead Band Width: 1usec
Dimensions: 41.0 x 21.0 x 26.5mm
Weight: 68.0g
Circuit Type: 32bit Programable Digital
Motor Type: Brushless
Gear Material: 5 Steel Gears
Output Shaft (type / Ømm): H25T
Case Material:  Aluminum
Dust / Water Resistance: IP-67 Rated
Connector Gauge (AWG) / Strand Count: 20AWG
