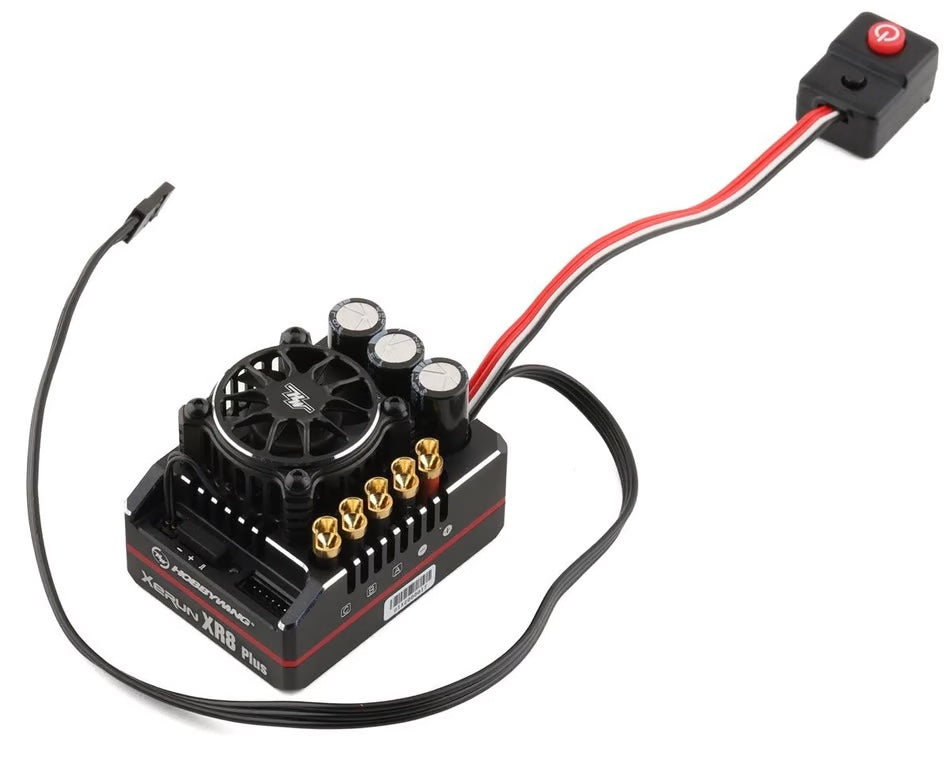

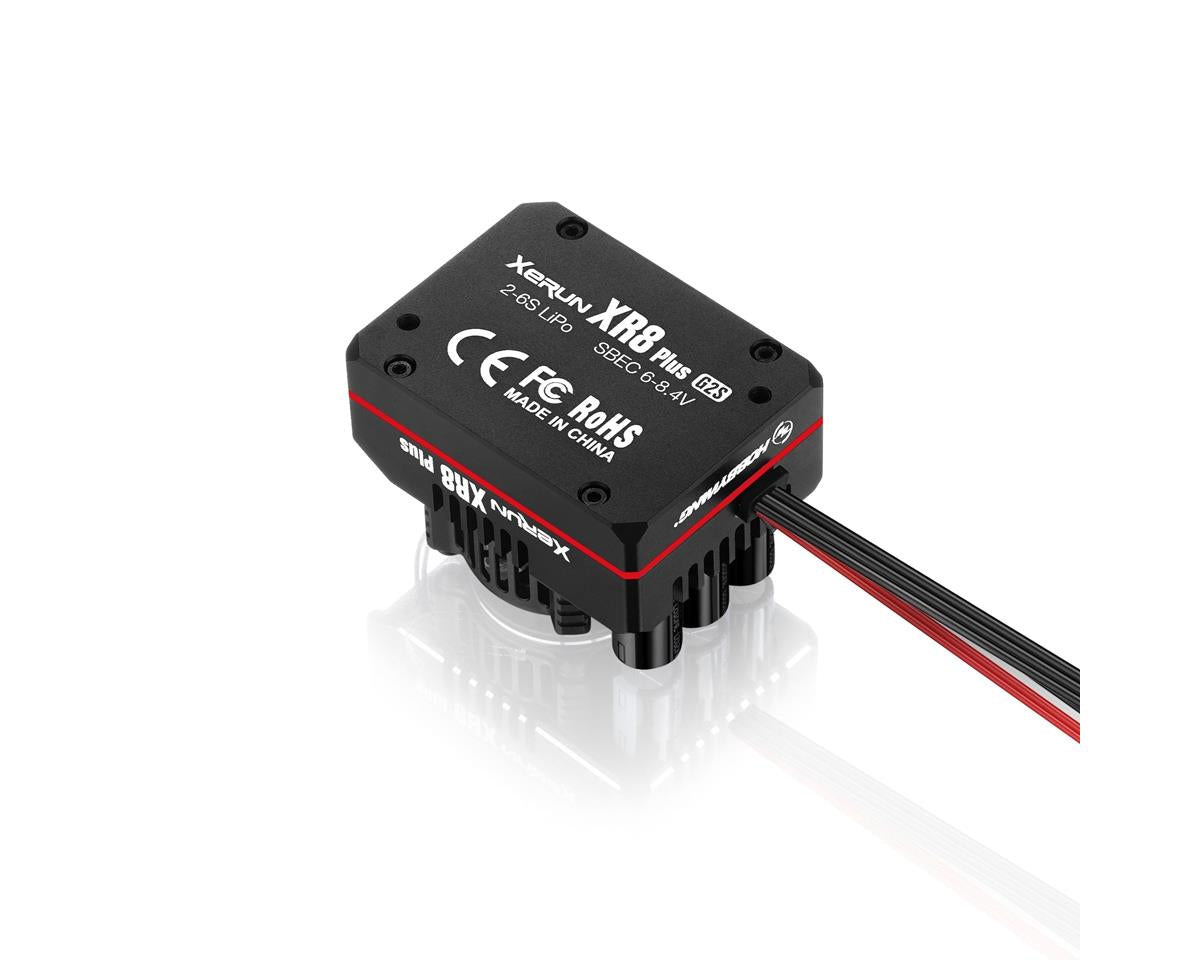

Hobbywing Xerun XR8 Plus G2S Brushless ESC/4268SD G3 Motor Combo. The Hobbywing Xerun XR8 Plus G2S 1/8 Competition Sensored Brushless ESC is the next level in 1/8 competition ESC's. Advancements have been made allowing this ESC to support 48° of boost and turbo timing. Pair this ESC with the included 4268SD G3 motor for extreme performance.

Features:
  • ESC:
    • Efficient heat dissipation system with lower temperature rise
    • Durable frameless fan
    • Internal Reverse Polarity Protection Circuit
    • RPM speed limit function
    • Easy Obtain Running Status with Real-time Data Recording Function
    • Multiple Programmable Items
    • Capacitor Thermal Protection
    • Super Internal BEC
    • Excellent dustproof performance
    • Ultra-soft 11AWG silicone wire
    • Customized solder tabs, easy to solder
  • Motor:
    • 2200Kv recommended for 1/8 off road
    • Turbo Timing Technology
    • Full Sensored mode (when paired with XR8 ESC)
    • Adjustable Timing (Bi-Directional) 20-40 degrees
    • Advanced Hall Sensor System
    • 4-pole-8-magnet "Staggered Pole" rotor - HOBBYWING Patented design
    • Guarantees users the effective heat dissipation and dust prevention
    • The use of double insulated windings (240°C R-rated), NMB bearings from Japan, and the high-intensity adhesive (340°C) guarantees users the outstanding performance and super durability
Specifications:
  • ESC:
    • Scale: 1/8th
    • Waterproof: No
    • Continuous/Peak ESC Current: 200A/1080A
    • Input Voltage: 2-6S Lipo
    • BEC Output: 6-8.4V Adjustable,
    • Continuous/Peak BEC Current: 6A/15A(Switch-mode)
    • ESC Programing: SET Button on ESC/LCD Program Box/OTA Programmer
    • Firmware Upgrade: Supported
    • Size: 56.1mmx42.1mmx38.5mm
    • Weight: 122g(w/wires)
    • Applications: SL BL Motors/SD BL Motors
    • Vehicles: 1/8th On-Road/Off-Road/Truggy Racing
    • KV Rating/T Count: 4S LiPo - 4268/4274 3000KV / 6S LiPo - 4274 2400KV
  • ESC Fan:
    • Size: 30x30x10mm
    • Voltage Range: 5-8.4V
  • Motor:
    • Kv: 2200Kv
    • Pole: 4
    • LiPo: 2S-6S
    • Shaft Diameter: 5mm
    • Resistance: 0.0069
    • No Load Current: 4.1A
    • Size (Diameter x Length): 42x68mm
    • Weight: 285g
    • Application: 1/8 Off Road
