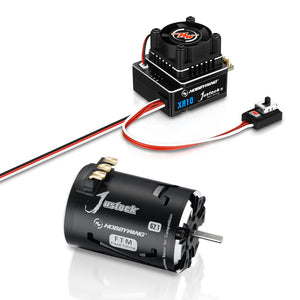

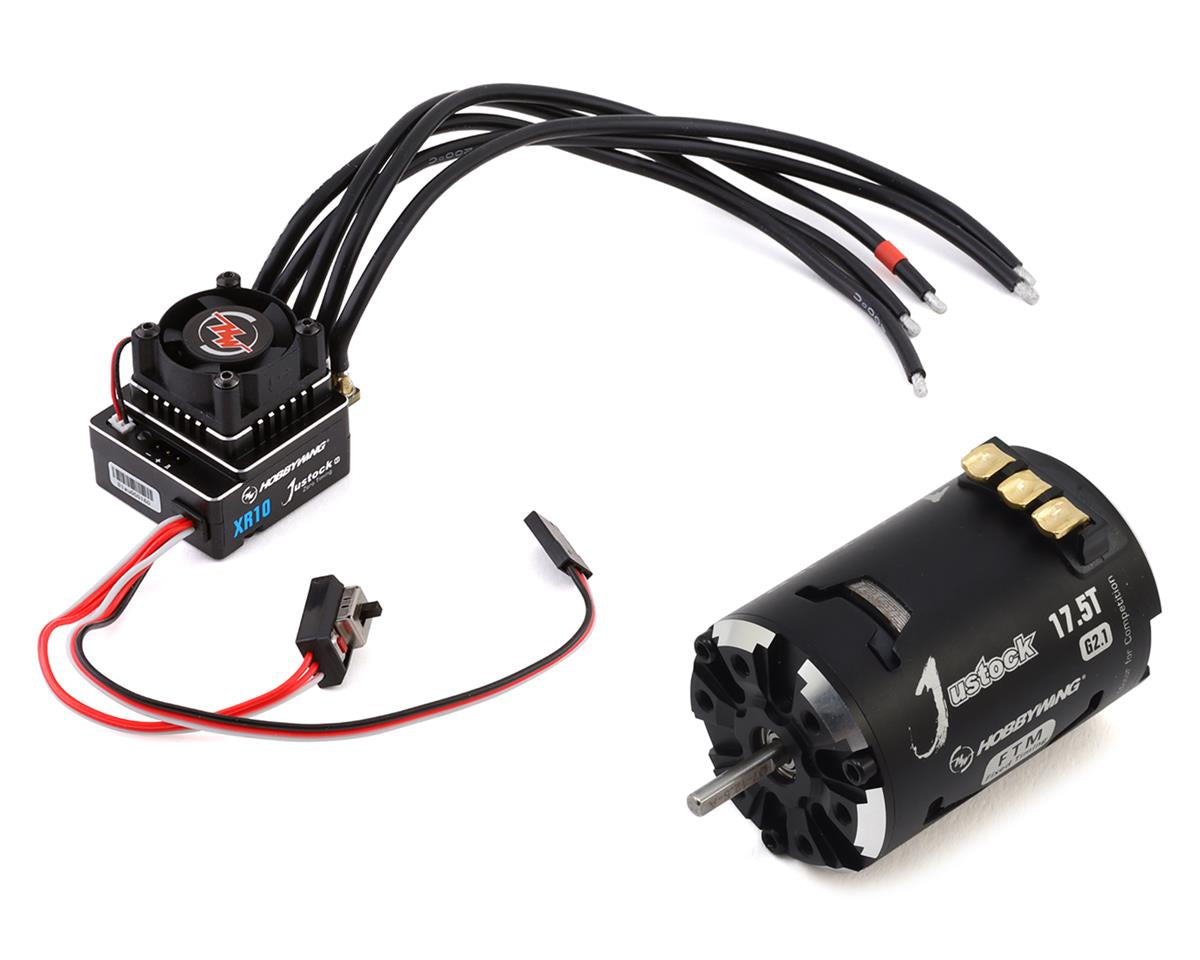

Hobbywing XR10 Justock G3S Sensored Brushless ESC/SD G2.1 Motor Combo (13.5T)

Combo Overview:

The Hobbywing XR10 Justock G3SS Sensored Brushless ESC/SD G2.1 Motor Combo has been designed with fixed, 0°, timing for spec class racing. The included SD G2.1 motor is an ideal stock motor for both 1/10 and 1/12 on and off-road racing. These two components paired together make for an ideal choice for beginners and experts alike.

Note: This product photo may not fully depict the described item. For comprehensive details on the listed product, please refer to the specifications provided.

Features:

• ESC:
• Built-in polarity protection. The XR10 Justock has integrated MOSFET's that if the battery terminals are connected in reverse, the MOSFET will be reverse-biased and will not allow current to flow through the system
• Programmable via OTA Wireless module or 3in1 program box
• Built-in capacitor module eliminates the need for external capacitors and unwanted space
• RPM speed limit function supports up to 6 different speed, RPM, selections to meet the needs and demands of various competitions in the world (Set through OTA module or 3in1 box)
• Internal ESC timing has been set to 0 degrees and cannot be adjusted for stock racing
• Built-in BEC can support a maximum output current of up to 8A. Output voltage can be set between 6V or 7.4V
• Calibration or performing a factory-reset can be achieved by using this SET button. Simple and easy to use
• Supports both CCW (counterclockwise) and CW (clockwise) motor directions
• Protection functions include: reverse polarity, battery voltage, ESC temperature, motor temperature, signal lost and locked rotor protection
• ESC includes the Freewheeling setting allowing for lower ESC temps enhancing drivability through corners
• Built-in data logging for post-run reports

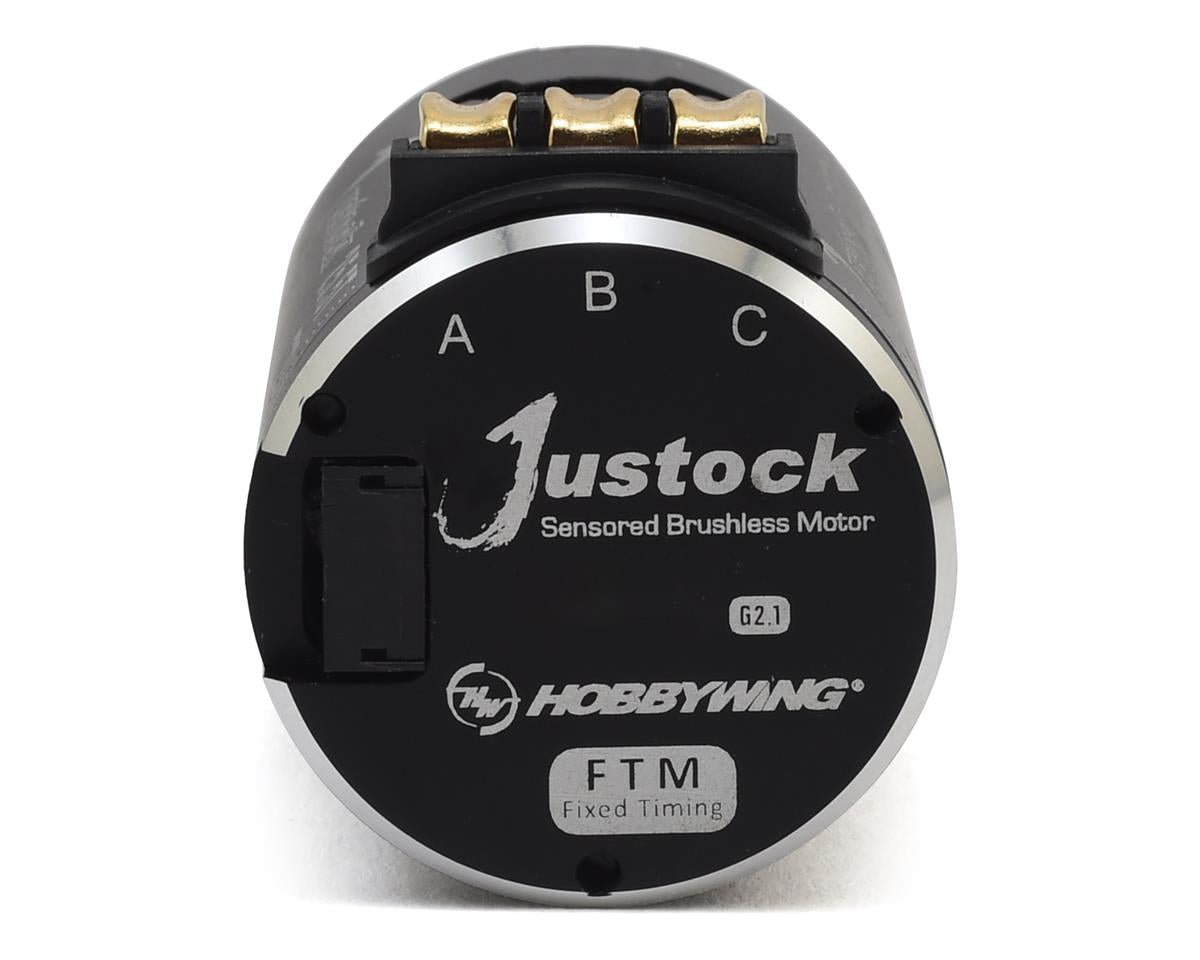

• Motor:
• Use of a heat-resistant magnet attached aluminum case and double insulated windings, high precision bearings, and rotor with a strong structure guarantees outstanding performance and super durability
• Built-in Hall sensor non-adjustable end bell combined with a high precision and balanced rotor guarantees the user a smooth and linear power on demand
• Silicon O-ring seal fitted between the end bell and stator helps to conduct inner heat to the motor case and prevent dust from entering the HALL sensor
• Detachable structure design for daily cleaning and maintenance can effectively prolong the service life of this Justock motor and improve its operating efficiency
• This Justock motor is applicable to various 1/10th, 1/12th on-road & off-road vehicles. It can be an ideal choice for Stock or Sport class races but can also be a nice choice for newbies for practice
• The motor design is in compliance with IFMAR, and ROAR specifications

Specifications:

• ESC:
• Continuous Current: 60A
• Burst Current: 380A
• Battery: 2S Lipo (Only 2S)
• Built-in BEC: 6V/7.4V @ 4A(Switch-mode)
• ESC programming: Independent programming port
• Motor Supported: Sensor and sensorless brushless motor
• Motor Limit: 10.5T, or greater,3650 Motor
• Application: 1/10, 1/12 On-road and Off-road
• Cooling Fan: Powered by BEC
• Size: 40.9x33.9x32.1mm (LxWxH)
• Weight: 75.4g (Including weight of wire)
• ROAR Approval: Yes
• Motor:
• Scale: 1/10, 1/12
• Brushless: Yes
• Sensored: Yes
• Pole Count: 2
• KV Rating: 3200kV
• LiPo Cells: 2-3S
• No-Load Current(A): 4A
• Outer Diameter: 35.9mm (1.413")
• Length: 52.5mm (2.067")
• Shaft Diameter: 3.17mm (0.125")
• Weight: 175g (6.17oz)
• Timing: Fixed

Includes:

• (1) Justock G3SS ESC
• (1) Justock 13.5T G2.1 brushless motor
• (1) 5V cooling fan
• (1) Sensor cable
