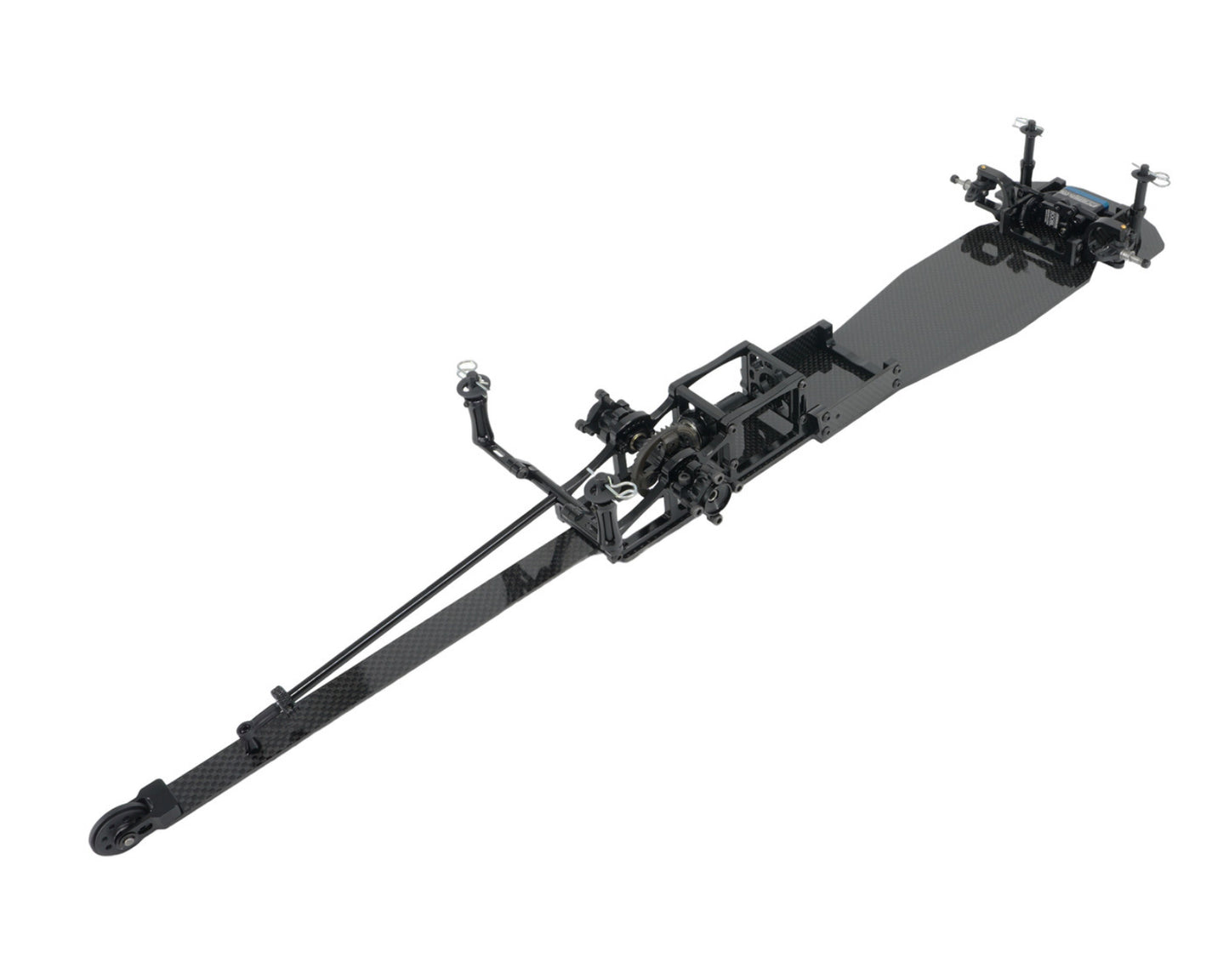

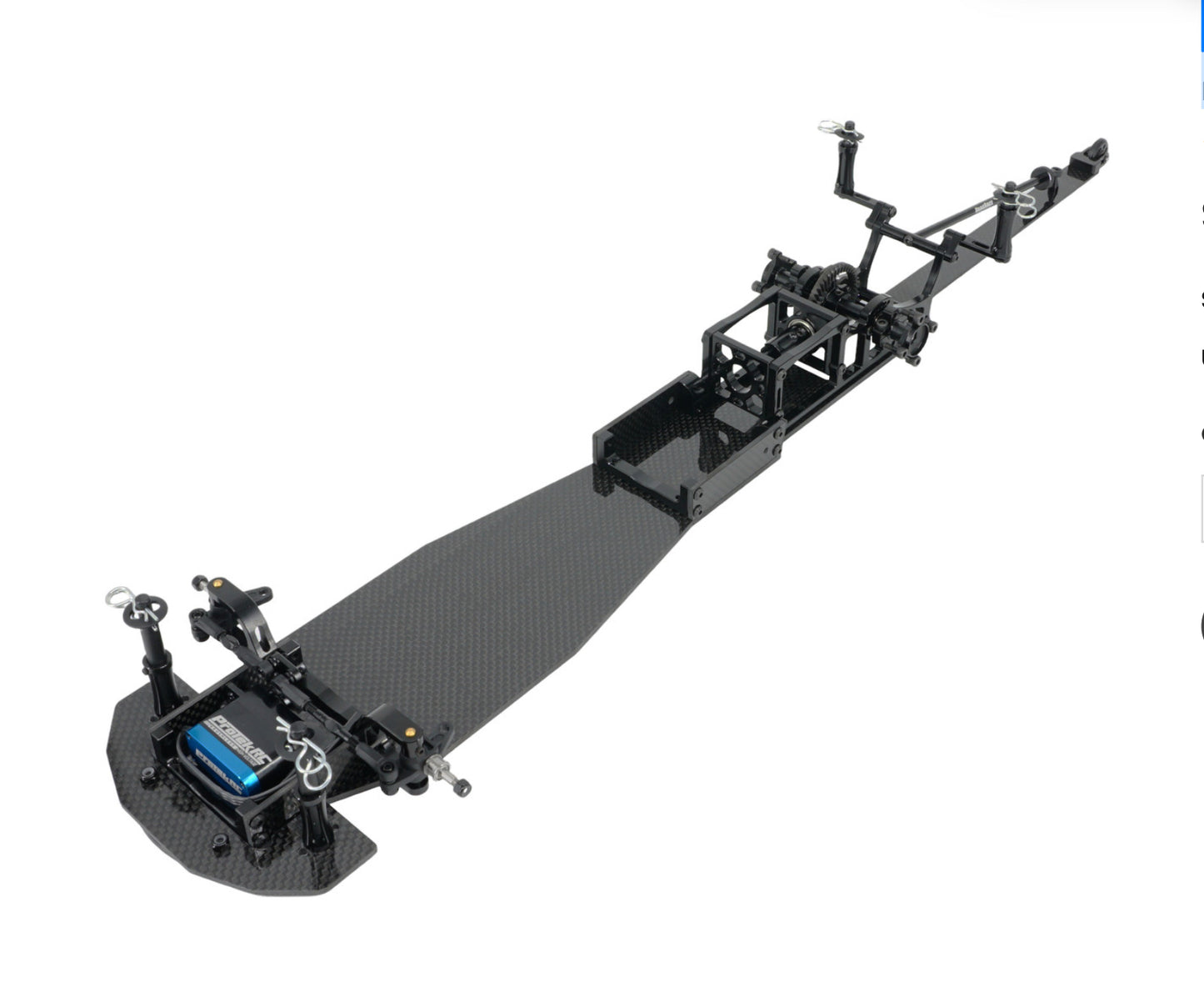

PF12 Pro Mod DragRace Concepts

The PF12 is our newest platform for Pro Foam Tire Pro Mod racing. Refined from 5 years of track data from its predecesor the Redline Pro Mod.

We started with narrowing the rear end pod to accomidate wider 1.75" wide tires to fit under todays narrow body designs. The pod features and updated rear body mount system that creates a wider spread on the body mounts for better body support.

The main chassis now features a 3mm chassis plate with split frame rail design that allows the chassis to be more reactive to bumps in the track surface. This split frame rail design relaxes the chassis and eliminates and "Tweak" in the chassis. The split frame rail design also makes room to accomidate larger 2s packs.

The C-Block style front end allows for lower body mouting in the front while the servo has been relocated to the chassis plate for a lower center of gravity. We recommend the Protek RC 500-BL #PTK-500BL for the steering servo in the PF12.

The wheelie bar has been extended to the maximum 10" legal length for RCDRL and IMDRA racing.

Standard Features:
