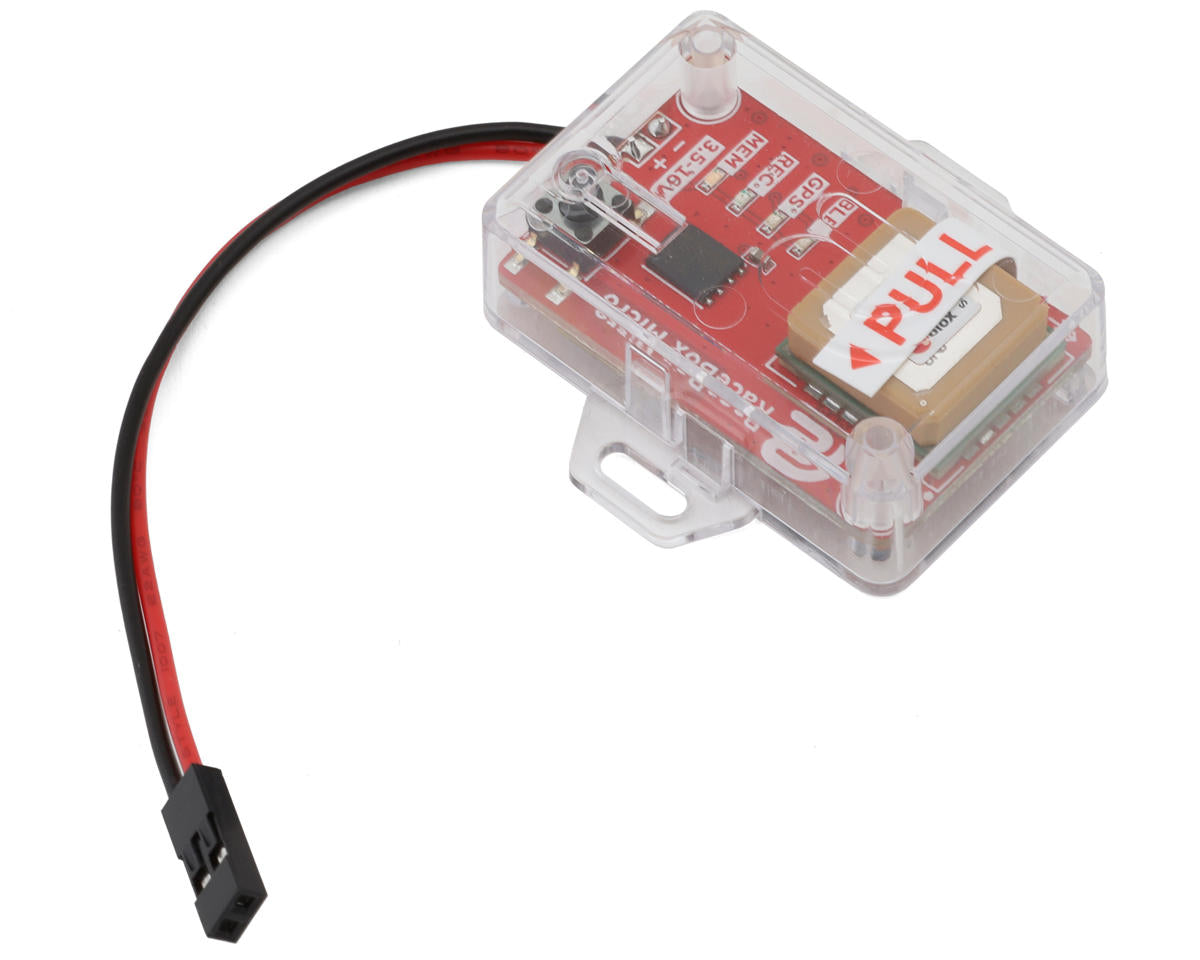

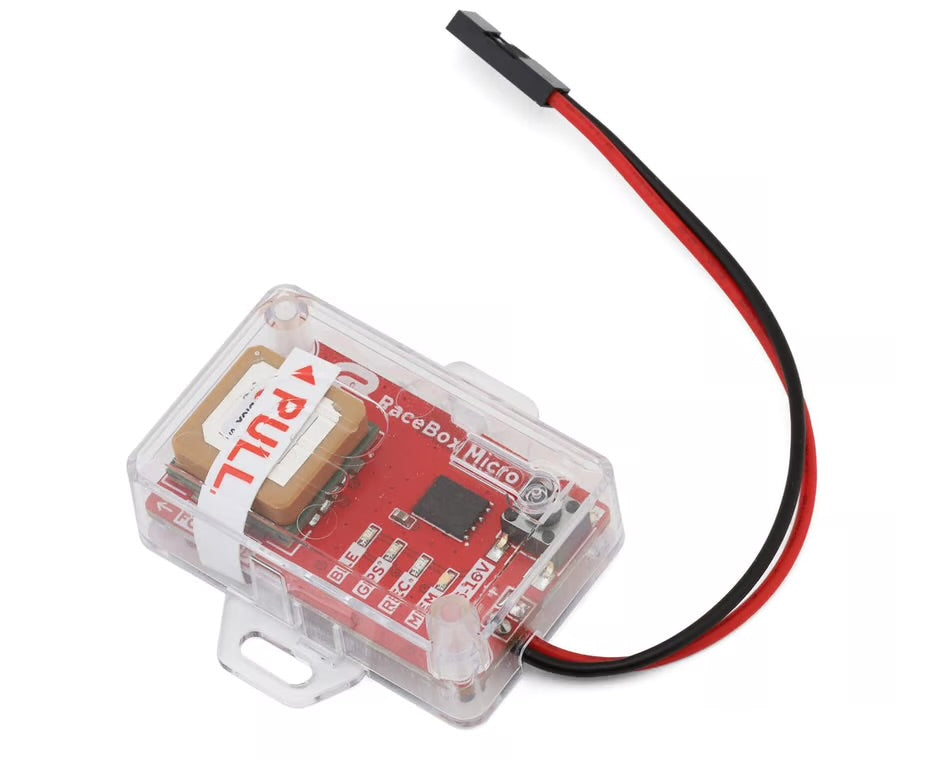

Racebox Micro GPS Speed Meter & Telemetry Data Logger

RaceBox Micro GPS Overview:

The RaceBox Micro GPS Speed Meter and Data Logger redefines precision tracking for DIY enthusiasts and developers alike. Designed with cutting-edge technology, this compact device delivers unparalleled accuracy and versatility. The RaceBox Micro supports both the proprietary RaceBox Protocol and the widely used NMEA standard over Bluetooth, ensuring seamless integration with various applications. Equipped with comprehensive API documentation, it is perfect for hobbyists looking to push the boundaries of innovation.

With its advanced 25Hz GNSS receiver, the RaceBox Micro achieves an exceptional measurement precision of ten centimeters, ensuring reliable data capture for lap and drag timing. Standalone capabilities, including built-in storage and an intuitive hardware button, make data recording effortless. The ultra-lightweight bare board design allows the RaceBox Micro to be integrated into almost any project without compromising performance.

Features:

• Supports RaceBox Protocol and NMEA standard over Bluetooth
• 25Hz GNSS receiver with 10cm precision
• Standalone operation with built-in data storage
• Compatible with Android and iOS smartphones
• Tracks multiple satellite systems including GPS, Glonass, and Galileo
• High precision accelerometer and gyroscope
• Voltage range of 3.5-16V with low power consumption
• Compact and lightweight design
• Easy start/stop recording with a hardware button

Specifications:

• GNSS Module: 25Hz
• Satellite Systems: GPS, Glonass, Galileo, Beidou, SBAS, QZSS
• Voltage Range: 3.5-16V
• Power Consumption: 20mA recording, less than 1mA standby
• Dimensions: 0.98x1.57x0.47in (25x40x12mm)
• Weight: 0.5oz (15g)
• Accelerometer: +/- 8G range
• Gyroscope: +/- 320 dps range
• Data Storage: Over 2hrs at 25Hz, 5hrs at 10Hz
• Connetctor: Female JST 2-Pin
