Reefs RC Beast 1000 Waterproof Digital 1/5 Scale Brushless Servo (High Voltage)

1 1
Reefs RC Related Products
In Stock Online Usually ships in 24 hours
Price:
$379.99
$379.99
Sale Sold out

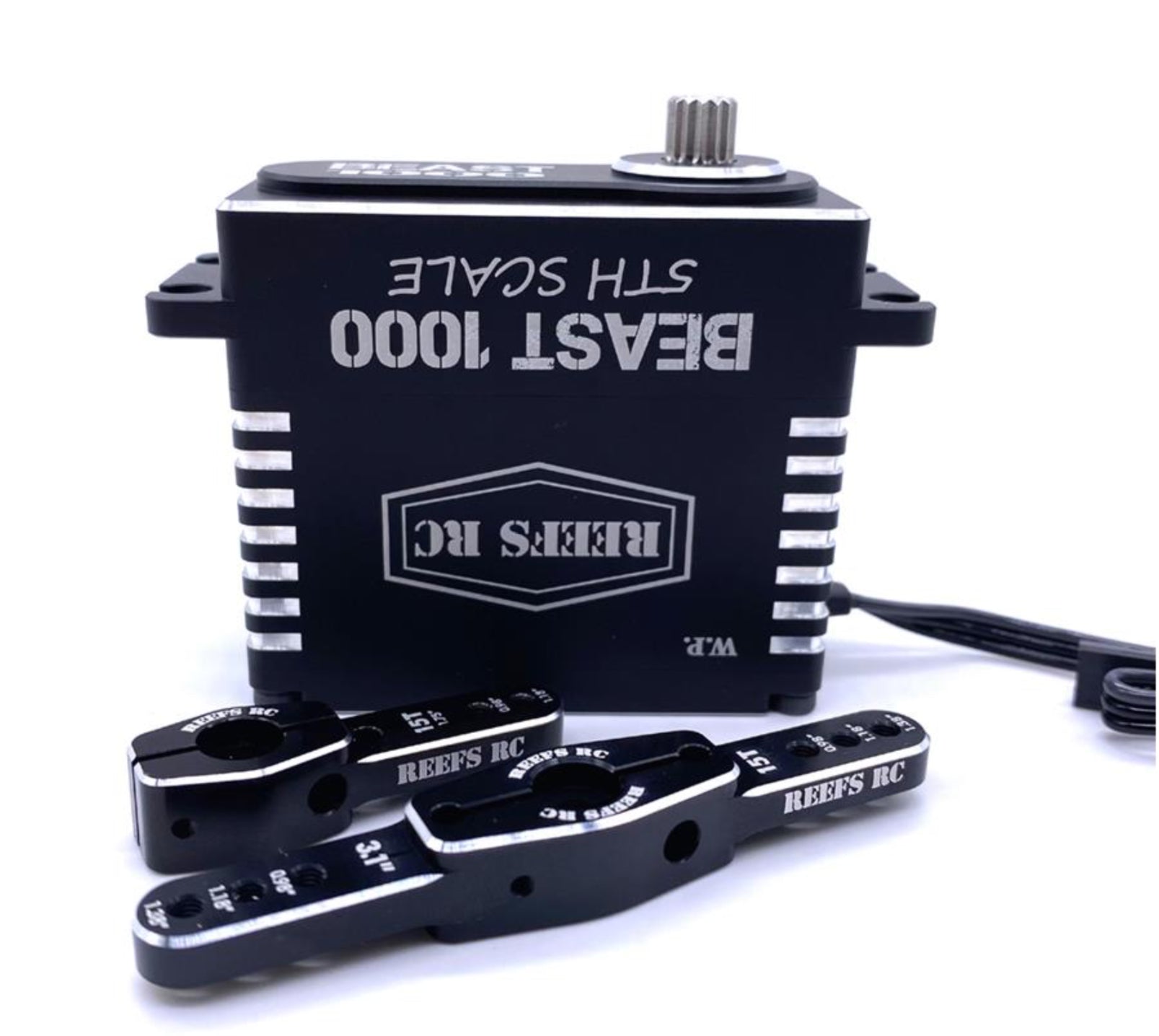

Reefs Beast 1000 Waterproof Digital 1/5 Scale Brushless Servo. This monster 1/5 scale servo is capable of up to 1080oz-in. at 8.4V and 0.08/60° sec. Package includes one servo, two servo horns and hardware.

NOTE: BEC is not required but recommended for maximum performance.

Features:

  • High torque high speed brushless servo
  • Magnetic angle sensor
  • Waterproof
  • Pulse width modulation control
  • Includes Reefs single and double servo horn
Specifications:



  • Voltage: 4.8-8.4V
  • Waterproofing: 7 Point Seal
  • Mechanical Angle: No Limit
  • Material: Steel Gears/CNC Aluminum Casing
  • Bearing Type: 5 Ball Bearing
  • Wires: 22AWG
  • Weight: 10oz (285g)
  • Dimension: 2.59x1.18x2.32in (LxWxH)
  • Torque:
    • 6V: 800oz-in
    • 7.4V: 900oz-in
    • 8.4V: 1080oz-in
  • Speed:
    • 6V: 0.11/60° sec
    • 7.4V: 0.095/60° sec
    • 8.4V: 0.08/60° sec
  • Spline: 15T
  • Dead Band Width: 2uSec
