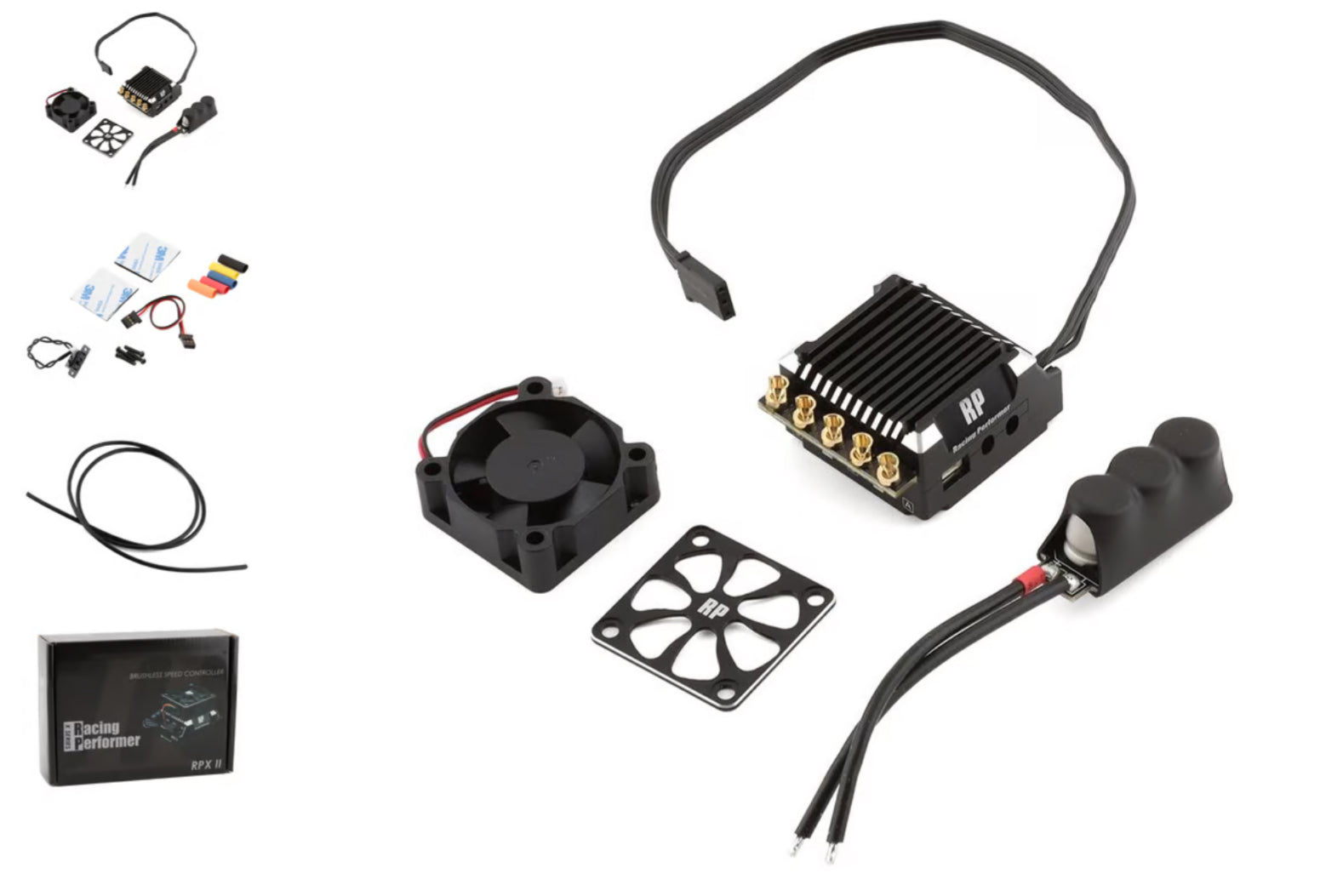

The Yokomo RPX-II Racing Performer Brushless Speed Controller represents the premium in ESC technology. Starting with high quality components such as a low resistance power supply and specialized FETs, Team Yokomo has created one of the most stable and powerful ESC's on the market. Optimized for driving performance it features in depth tuning options to adjust to a variety of track conditions and driver preferences.

Changing the program settings can be done with the Yokomo Brushless Programmer (YOKBL-RPXP2 - sold separately). The ESC can also be remotely programmed using the smartphone application and Yokomo WiFi Module (YOKBL-WMA).

Features:

  • Dedicated sensored brushless controller
  • Programmable with YOKBL-WMA Wi-Fi module or YOKBL-RPXP2 Programmer
  • Equipped with ATH (auto throttle function), with simplified ESC setting for stock class
  • Throttle and Brake frequency adjustments for any track condition
  • Voltage limit function suppresses the power change from the start to the end of the race
  • Full aluminum case with cooling vent & high power 30mm cooling fan
Specifications:
Motor Type: Sensored Brushless
Motor Limit: 3.0T (specification when using the fan)
Operating Voltage: 3.7-7.4V
Forward/Brake/Reverse: Yes
Full Aluminum Case/Heatsink: Yes
Typ. Voltage Drop @20A per Phase: 0.048V
Rated Current per Phase: 249A
Plugged 30x30x10mm Fan: optional
BEC Output: 6V/7.4V 6A Linear Continuous Current
BEC Output Short Protection: Yes
"Boost 0" Mode: Yes
Multi-frequency system: Yes
Power Wires: 12 awg
Case Size: 32.9x34.6x19.6mm (without fan)
Weight: 44g (without cables and fan)
